MONOLOG

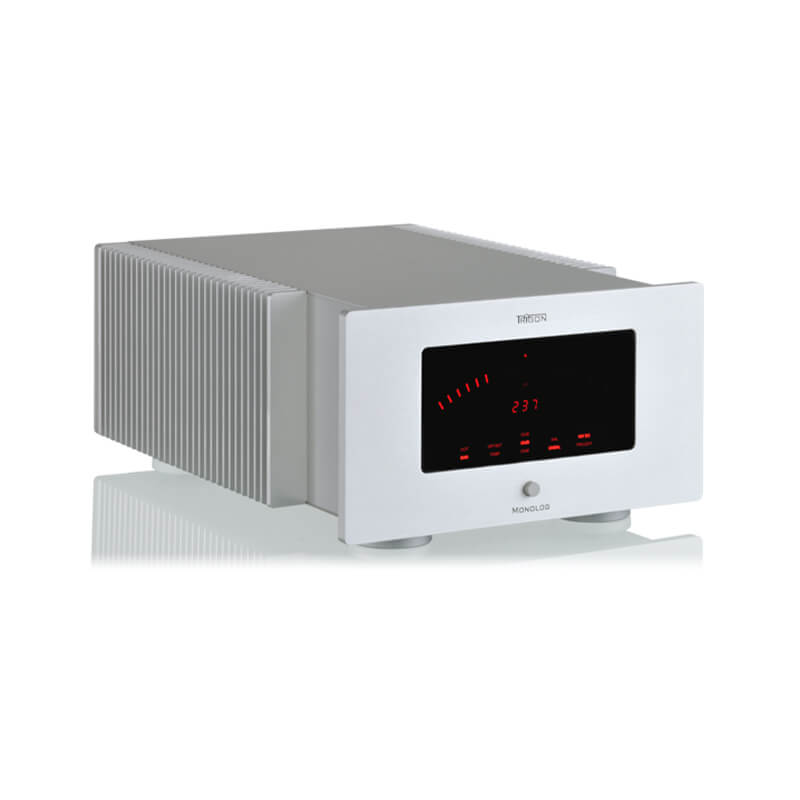

Trigon MONOLOG
Power amplifier
PremiumLine defines the front-row seat for authentic music reproduction, monologue as the music is played, without contradiction. This audio component positions Trigon in the premium segment of high fidelity, both in appearance and performance.
Timelessly elegant design in aluminum and chrome, innovative conception and technology, the highest quality components and perfect craftsmanship form the synthesis PremiumLine.
The Monolog symmetrical power amplifier is designed as a bridge amplifier. Each monoblock contains two power amplifiers, powered by two powerful 500 VA transformers. Multi-stage gain adjustment offers flexibility for every application. A switchable display provides information about the selected operating modes as well as the current mains voltage. A solid aluminum housing, sandwich-construction housing cover, and Trigon vibration-absorbing feet protect the highly amplified audio signals from harmful microphonic influences. These monoblocks provide sufficient power for every musical requirement on virtually any loudspeaker.
Their high power bandwidth enables them to follow the speed and dynamics of music signals without any hindrance. With maximum possible channel separation, they create a stereo panorama, a vivid representation of the respective musical events without amplifier-related limitations.
The extreme circuitry of the Monolog not only enables the confident reproduction of large sound bodies, but also maximum speaker control, reproduction of the finest details, and quiet listening without limited dynamics.
Monolog your speaker and enjoy what it has to say.
SPECIFICATIONS
Description: | Mono Power Amp |
Output Power: | 650W/4Ω – 400W/8Ω |
Inputs: | 1 x RCA, 1 x XLR balanced |
Input Impedance: | 47kΩ (both inputs) |
Input Sensitivity: | 1.2Veff at 32dB gain |
Total Harmonic Distortion: | < 0.03% |
Frequency Range: | 0.5Hz – 250kHz (–3.0dB) |
Noise Voltage: | Unbalanced: 100μV (A-weighted), 140μV (unweighted) Balanced: 150μV (A-weighted), 220μV (unweighted) |
Signal to Noise Ratio: | –103dB (1W/4Ω) |
Weight: | 23.5kg (each) |
Dimensions (W x H x D): | 300 x 160 x 450mm |
Guarantee: | 3 years |
Finish: | Black or Silver |
